AIYIMA Double 15 28V AC High Power Deep Bass 2.1 Amplifier 3 Channel Subwoofer Professional Amplifier Board

AIYIMA Double 15 28V AC High Power Deep Bass 2.1 Amplifier 3 Channel Subwoofer Professional Amplifier Board
  • Продавецxqtech.us
  • Список ценUS $21.66piece
  • Продажная ценаUS $21.66piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,5 (480)

Oписание продукта


work voltage AC115V  or AC230V  for choose

Front panel:  Default is silver. (we also can provide black front. if you need black. Please send message to us)

Output voltage:   we have following kinds for choose


1:DC18V  2A
2:DC20V  1.8A
3:DC24V  1.6A
4:DC28V  1.25A

we also can custom-make other output voltage!!.




Polarity:  Internal + / outside -

Transformer power:  60VA

Output DC cable plug type: default 5.5*2.5mm /compatible 5.5*2.1mm
 (we also can provide other type DC plug)

weight: about 2.5kg/set


External dimensions Size:145mm*54mm*210mm

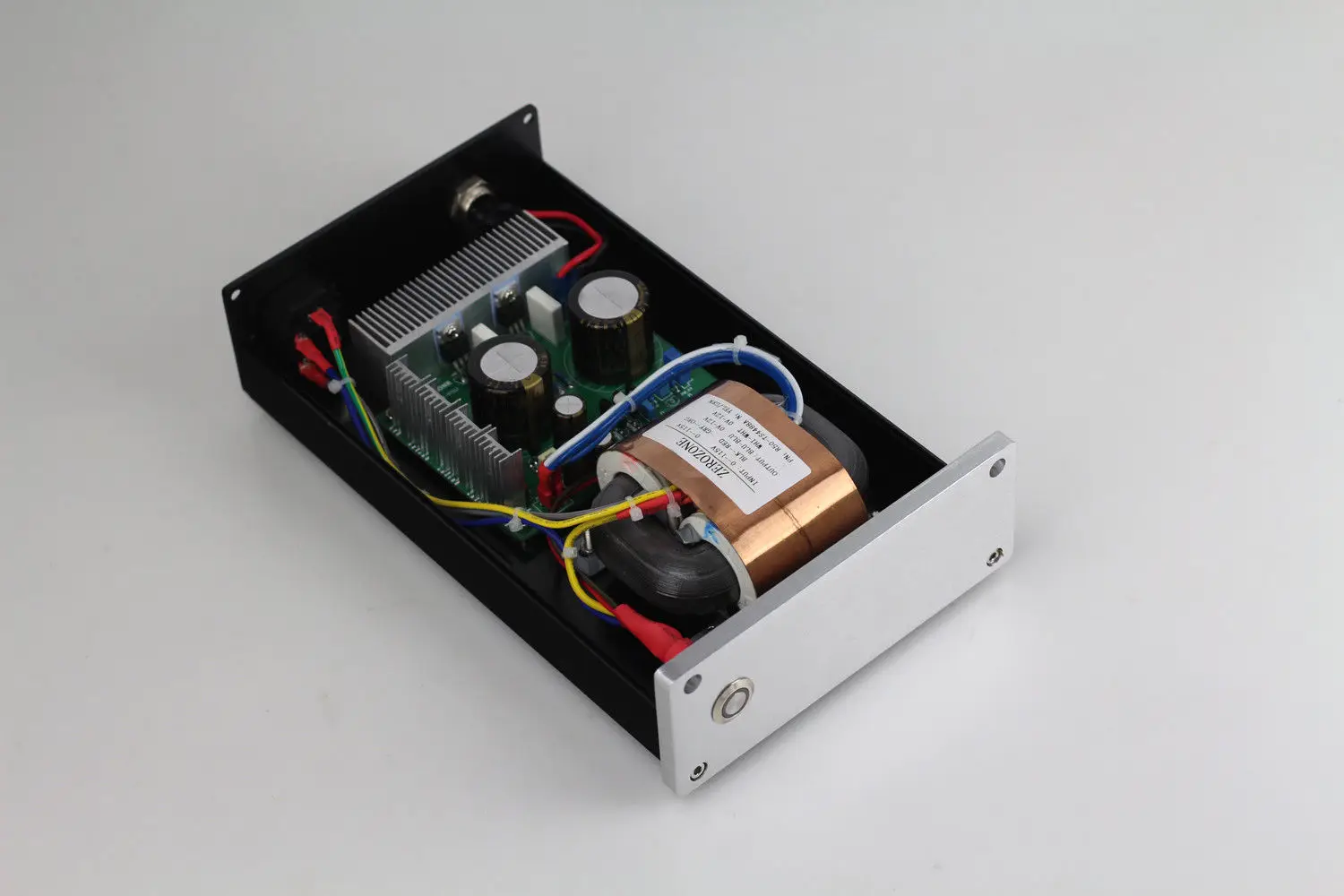

main materials:  Full Aluminum chassis. All-copper transformer. main caps is original Nichicon kg Series....




This is a Ultra low noise, low ripple Hiend super linear power supply, can Improve sound quality.

The circuit uses all discrete components (no integrated circuits), and features high-current MOSFETs as the output "pass" devices. S22 is derived from the σ22, which is the result of a community service project for the audiophile hobbyist. The schematic diagram is open source.




Package included:  Finished Linear Power supply  X 1

                               1.2M output DC cable(5.5*2.5mm)     X 1
