BeagleBone Black Rev C 512MB DDR3 4GB 8bit eMMC 1GHz ARM Cortex-A8 Development Board Kit + 7inch LCD Screen + LCD Cape + Cables

BB Black/BeagleBone Black development/evaluation Package D


BB-Black

Overview

BeagleBone Black is an MSRP community-supported development platform for developers and hobbyists. Boot Linux in under 10 seconds and get started on development in less than 5 minutes with just a single USB cable.


Features

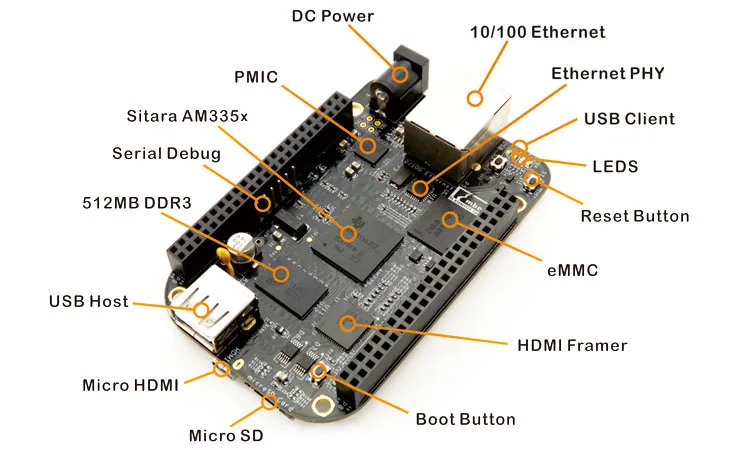

BB-Black on board resource

  • Processor: TI Sitara AM335x, 1GHz, 2000 MIPS
    • 1 GHz ARM® Cortex™-A8
    • SGX530 Graphics Engine
    • Programmable Real-Time Unit Subsystem
  • Memory
    • SDRAM: 512MB DDR3L 800MHZ
    • eMMC Flash:
      • Rev B: 2GB (discontinued)
      • Rev C: 4GB (as of 2014.05.21)
  • SD/MMC Connector for microSD
  • Power management: TPS65217C PMIC is used along with a separate LDO to provide power to the system
  • Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
  • Power Source
    • miniUSB USB or DC Jack
    • 5VDC External Via Expansion Header
  • Connectivity
    • High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB
    • High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS/FS/HS
    • Serial Port: UART0 access via 6 pin 3.3V TTL Header. Header is populated
    • 10/100M Ethernet (RJ45)
  • User Input / Output
    • Reset Button
    • Boot Button
    • Power Button
    • LED power indicator
    • 4 user configurable LEDs
  • Video/Audio Interfaces
    • HDMI D type interface
    • LCD interface
    • Stereo audio over HDMI interface
  • Expansion Interfaces
    • LCD,  UART, eMMC
    • ADC, I2C, SPI, PWM
  • Operating Power: 5V/0.35A
  • Board Size: 3.4” x 2.1”

Photos


What\'s on the LCD CAPE (7inch)

BB Black Expansion CAPE on board resource

  1. BB_BLACK connector : for connecting BB Black
  2. 7inch LCD interface : for connecting 7inch resistive touchscreen LCD
  3. DEBUG interface : BB Black debug interface, for connecting serial modules
  4. BOOT selection button : Boot from TF card

LCD CAPE (7inch) Photos

BB Black Expansion CAPE
LCD CAPE (7inch) BB Black Expansion CAPE
BB Black Expansion CAPE
LCD CAPE (7inch) BB Black Expansion CAPE back view
BB Black Expansion CAPE
LCD CAPE (7inch) BB Black Expansion CAPE
BB Black Expansion CAPE
Connecting with BB Black and 7inch LCD

LCD CAPE (7inch) Development Resources

Data TypesDescriptionDownload
DocumentationsUser Manual
Porting Drivers
Porting Kernel
Porting mjpg-streamer
Test Code XXX_CAPE_Angstrom_API.7z
Source Codesource code list
Softwaresoftware list



Data TypesDescriptionDownload
Schematics LCD CAPE.pdf
Image Angstrom-Cloud9-IDE-GNOME-eglibc-ipk-v2012.12-beaglebone-2013.05.24-LCD-cape-LCD7-v1.1.img.7z
Debian-sdcard-beaglebone-2015.02.27-LCD-cape-LCD7-v1.0.img.7z
Debian-sdcard-beaglebone-2015.02.27-LCD-cape-LCD7-v2.0.img.7z

Package Contains

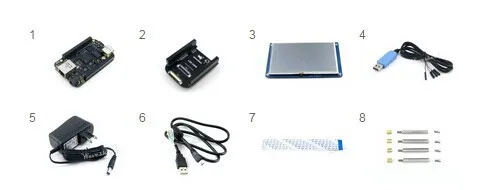

  1. BB Black x 1
  2. LCD CAPE (7inch) x 1
  3. 7inch Resistive Touch LCD x 1
  4. USB to TTL 4-pin Wire × 1
  5. Power Adapter US Standard 5V 2A 5.5/2.1mm × 1
  6. USB type A plug to mini-B plug cable x 1
  7. 40-pin FFC 0.5 200mm (opposite sides contact) x 1
  8. 7inch LCD screws pack x 1
